VISION™ aluminum railing is a system designed with “in-line” panel clips that support the infill panel. Although the standard infill is glass, metal infills in stainless steel are available in wire mesh and perforated designs, with 304 SS as standard or 316 as an option. Acrylic and other custom infill materials are also available. Glass or other infill panels are retained by 4 rounded panel clips. Glass panels will have holes for the bottom 2 clips. Glass infill is available in 3/8” monolithic or 7/16” laminated glass.  Assist rails in aluminum are available for stairs or for level railing as on option.

If you would like to see how our VISION™ aluminum railing system would work with your project, contact us



Projects Incorporating VISION™ AL Railing Railings

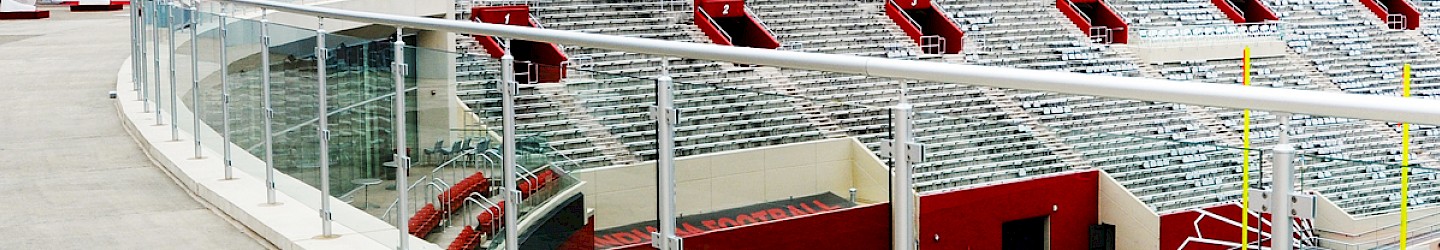

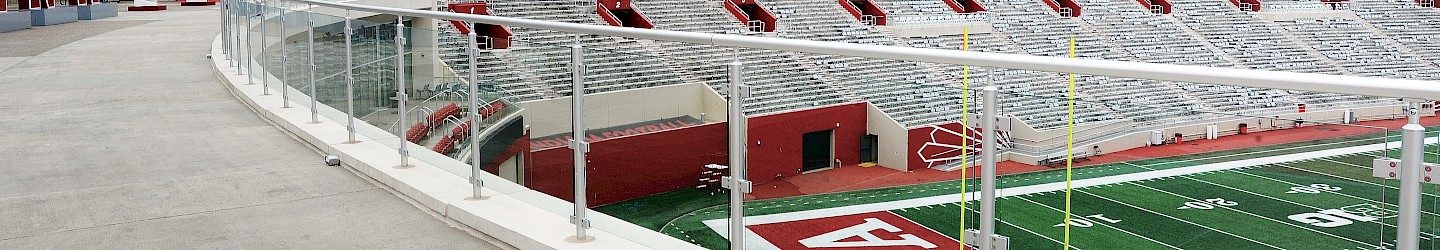

Indiana University Memorial Stadium

Railing
Interna-Rail®, Structural Glass Railing, VISION™ AL Railing
Infill
Glass, Wire Mesh Infill Panels
Finish
Clear anodized finish railing with 3/8" thick tempered glass and wire mesh steel infills

Product Data Sheets

  • VISION™ Aluminum Product Data Sheet VISION™ Aluminum Product Data Sheet

Drawings

  • VISION™ Aluminum Railing Drawing VISION™ Aluminum Railing Drawing
