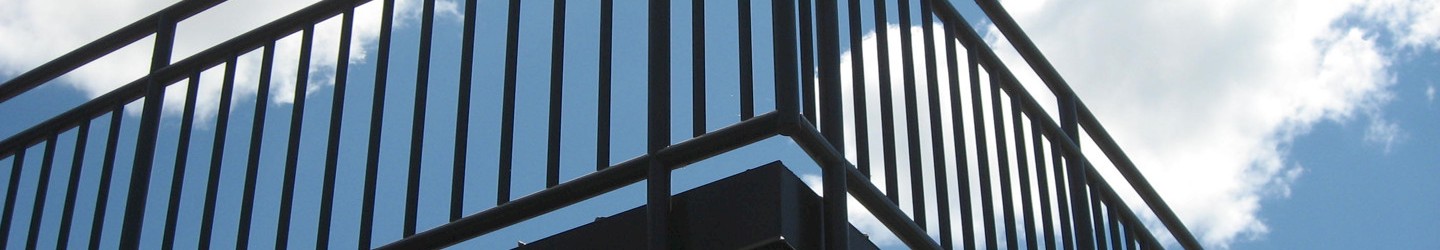

Our component picket railing system uses mechanical connectors that are specially machined to attach pickets securely to the top and bottom rails.  These connectors prevent any turning or slippage of the pickets (a common problem), and since they’re not welded, show no welding marks.  When used with Speed-Rail® or Interna-Rail® frames, our picket railing system is a very cost effective yet aesthetically pleasing solution.

Pickets are ¾ inch Schedule 10, and railing is available in mill finish aluminum, anodized, or TGIC Polyester powder coat.



Projects Incorporating Picket Infill Panels

ADA Compliant Handrail - Aluminum & Stainless Steel

Railing
ADA Compliant Handrail
Infill
Picket, Wire Mesh
Finish
Anodized or powder coated for a high level of corrosion resistance

Wesbanco Arena - Interna-Rail® VUE

Railing
Interna-Rail® VUE, Interna-Rail®
Infill
Glass, Picket
Finish
Black anodized railing with frosted glass infill and green powder coated picket railing

Product Data Sheets

  • Hollaender Speed‐Rail® Railing System with Metal or Glass Infill Panels Hollaender Speed‐Rail® Railing System with Metal or Glass Infill Panels
  • Picket Railing Product Data Sheet Picket Railing Product Data Sheet

Drawings

  • ADA Railing - Isometric ADA Railing - Isometric
  • Interna-Rail® Picket Handrail, Level Interna-Rail® Picket Handrail, Level
  • Interna-Rail® with Pickets BIM Interna-Rail® with Pickets BIM
  • Speed-Rail® 3-Line with Picket - Ramp Speed-Rail® 3-Line with Picket - Ramp
  • Speed-Rail® 3-Line with Picket - Stair Speed-Rail® 3-Line with Picket - Stair
