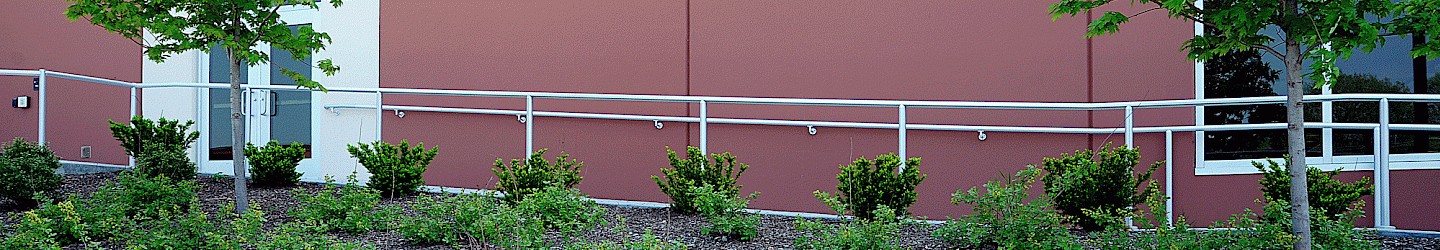

Hollaender® post and wall mounted handrail is available in an anodized aluminum non-welded mechanical tee connection system.

Posts: Aluminum 6005-T5, 1 ½” IPS (48.2 mm O.D.) Schedule 80 Wall (clear anodized).
Rails: Aluminum 6063-T6, 1 ½” IPS (48.2 mm O.D.) Schedule 40 Wall (clear anodized).
Fittings: Aluminum 6063-T6 (clear anodized).
Base Flanges: Cast aluminum.
Fasteners: Stainless steel 304 alloy.

If you would like to see how our Post and Wall Mounted Handrail system would work with your project, contact us



Projects Incorporating AL Post and Wall Mounted Handrail Railings

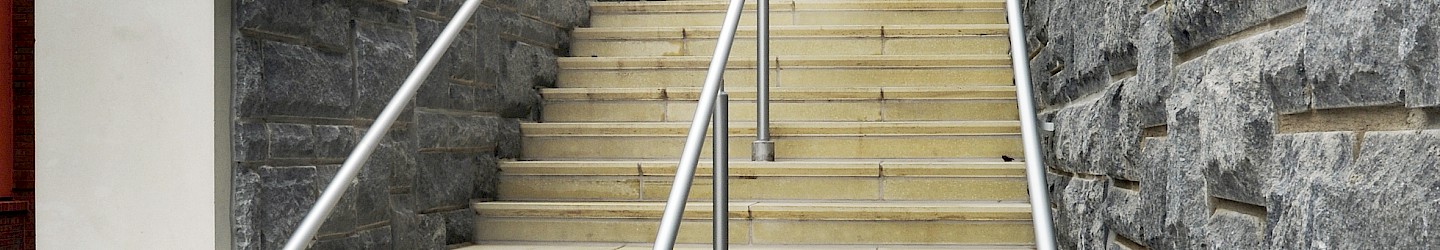

Liberty Center

Railing
Interna-Rail® VUE, AL Post and Wall Mounted Handrail
Infill
Glass
Finish
Clear anodized finish railing with 3/8" thick tempered glass

Product Data Sheets

  • Post and Wall Mounted Handrail Product Data Post and Wall Mounted Handrail Product Data
